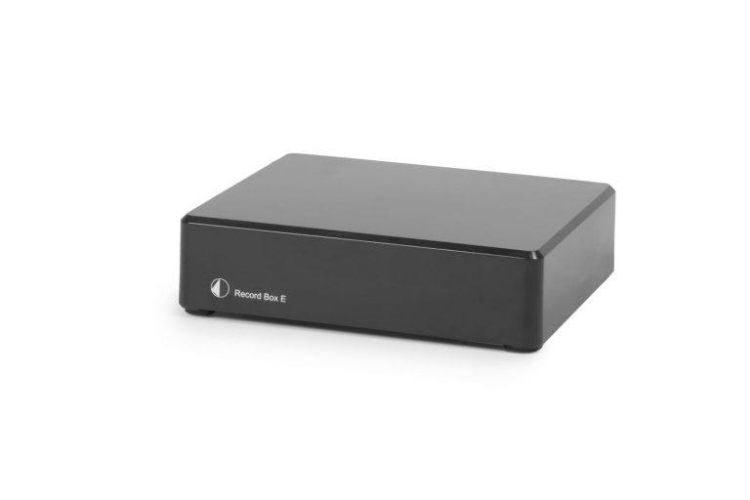

Pro-ject Record Box E (MM & MC) – UK
$160.00
Phono preamplifier that supports MM & MC cartridge with ADC and USB output
Record Box E: Pure vinyl listening pleasure plus recording functionality!
Record Box E is an high-quality phono preamplifier that offers the possibility to convert your valuable vinyl into digital format. Record Box E accepts both MM & MC cartridges and gives audiophile music experience at an entry-level price.
The integrated ADC works with Windows and MAC operating systems. You simply connect it via USB to your computers to digitised your entire vinyl collection.
Features
- Amplification and RIAA equalisation for MM & MC
- Design principle inspired by Dr. Sykora
- Digitalisation of vinyl for recording direct to USB with suitable recording programs
- Automatic recognition, no additional drivers needed
- Runs on Windows®, Mac OS® & Linux operating systems
- SMD circuitry with special low noise components
- Internal metal shielding
- Small size allows installation close to record player
- Gold plated RCA connection sockets
- Outboard power supply included
- Black or White casing
Technical Spec
| Input capacitance/input impedance | MC: 100 ohms/120 pF (low output MC) MM: 47kohms/120 pF (MM or high output MC) |
| Gain, MM / MC | 40 dB / 60 dB |
| Output voltage typically | 300 mV/1 kHz bei 3 mV/1 kHz (MM) oder 0.3 mV/1 kHz (MC) |
| Max. output | 9,5 V (1 kHz) |
| Noise floor MM / MC | 94 dB (A weighted) / 75 dB (A weighted) |
| THD MM / MC | <0,01% / <0,05% |
| RIAA-equalisation curve accuracy | 20 Hz – 20 kHz / max. 0.5 dB |
| A/D converter | Burr Brown PCM2904 16-Bit Delta Sigma |
| Sampling rates | 32, 44,1 and 48 kHz |
| USB output | 5 pin Mini b Buchse |
| USB signal | digital serial data protocol USB 1.1 |
| Operating systems | Windows XP®, Windows Vista®, Windows 7®, Windows 8®, Mac OS, Linux |
| Input / Line output | 1 pair RCA/Cinch sockets each |
| Outboard power supply | 18 V / 500 mA DC, suitable for your country’s mains supply |
| Power consumption | 100 mA DC |
| Dimensions W x H x D (D with sockets) | 120 x 32 x 100 (115) mm |
| Weight | 250g without power supply |
